Installing the D-Link AirPlus G - Windows Vista

Important: Do not plug in the DWL-G122 adapter until you have installed the drivers from your CD.

Before installing your D-Link AirPlus G it is imperative that you establish your connection via the Ethernet cable first, please see Installing the D-Link DSL-G624T

Once connected you will need to download the adapter Drivers for the D-Link AirPlus G. Please click on ftp://ftp.dlink.co.uk/wireless/dwlg122_rev_Bx/ to download the driver (dwlg122_revCx_vista_dr v_v3.0.1.zip).

Extract the downloaded zip file to a folder that will be easily located then plug in the adapter and wait for the new hardware wizard to appear.

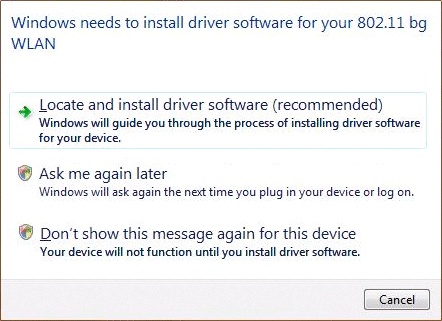

Click on Locate and install driver software.

Installing the D-Link AirPlus G -1

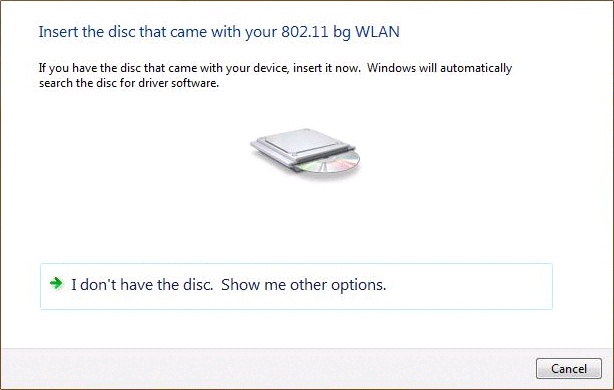

After a short while the wizard will present the following screen, I do not have the disk, show me other options. Click this options and wait for the next screen.

Installing the D-Link AirPlus G -2

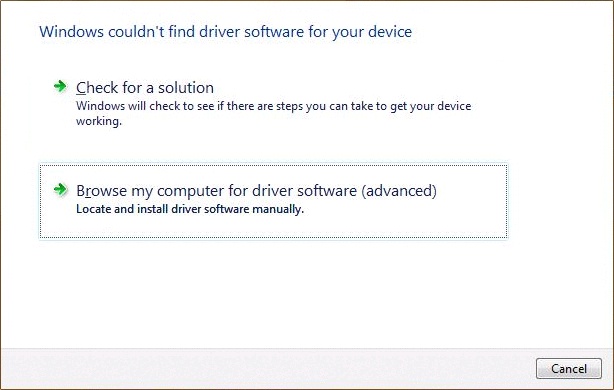

Select Browse my computer for driver software.

Installing the D-Link AirPlus G -3

Click on the Browse button and browser to the location where the unzipped drivers are located.

Installing the D-Link AirPlus G - 4

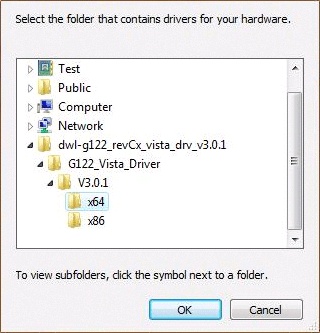

You will be required to select either x64(32bit) or x86(64bit) drivers, this is dependant on what Operating system you are using.

Installing the D-Link AirPlus G - 5

Once you have selected your driver you will see the full path of the driver location. Click Next.

Installing the D-Link AirPlus G - 6

You will now see a security warning, please click Install the driver software anyway.

Installing the D-Link AirPlus G - 7

The Driver will now install. Once completed click Close.

Installing the D-Link AirPlus G - 8

Right click on the Local Area Connection icon, located on the right hand side of your task bar.

Click on Connect to a Network.

Installing the D-Link AirPlus G - 9

Highlight DLINK_WIRELESS and click on Connect.

Installing the D-Link AirPlus G - 10

Enter the WEP or WPA security key when prompted and click on Connect.

To view the security key typed click Display Characters.

Installing the D-Link AirPlus G - 11

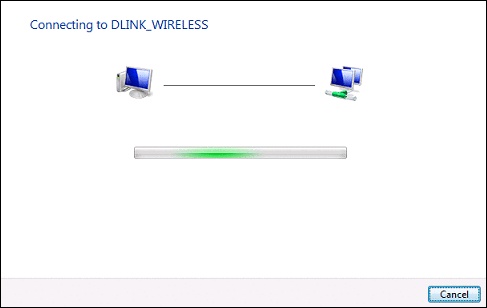

Installing the D-Link AirPlus G - 12

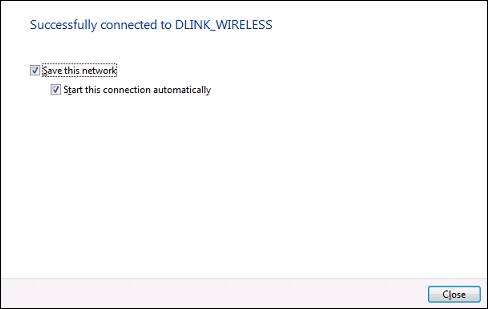

Installing the D-Link AirPlus G - 14

Once a connection has been established open your web browser and confirm your connection working. If you experience problems restart your computer and try again.
